RxFire in Svelte 3 using Firebase Firestore and Authentication

RxFire in Svelte 3 using Firebase Firestore and Authentication

RxFire was created by David East, who is a Firebase Developer Advocate. Although Firebase Blog introduced RxFire in September, 2018. I thought it would be a good point of reference for beginners starting out with both Svelte 3 and Firebase.For those coming from an Angular background you might be familiar with RxJS and the Angularfire2 package. I know from my experience you MUST learn RxJS if you are going to use Angular on any size application. It can be one of the hardest parts to learn but there are several fantastic tutorials and sites dedicated to how RxJS works.Some of my favorites

New to Svelte 3, Please checkout

Example

In the example below it shows a quick preview osf how the final React application will work. As you can see there are essentiall 4 steps that will occur.

  1. Sign In
  2. Add Cat Fact
  3. Show Added Cat Fact in List
  4. Sign Out

Setup

You will need NPM which comes bundled with nodejs. Also npx is the easiest using the template provided on git.

npx degit sveltejs/template rxfire-svelte cd rxfire/svelte

You will also need to create your own Firebase project and initialize a Firestore database, please create this using strict mode. Example rules;

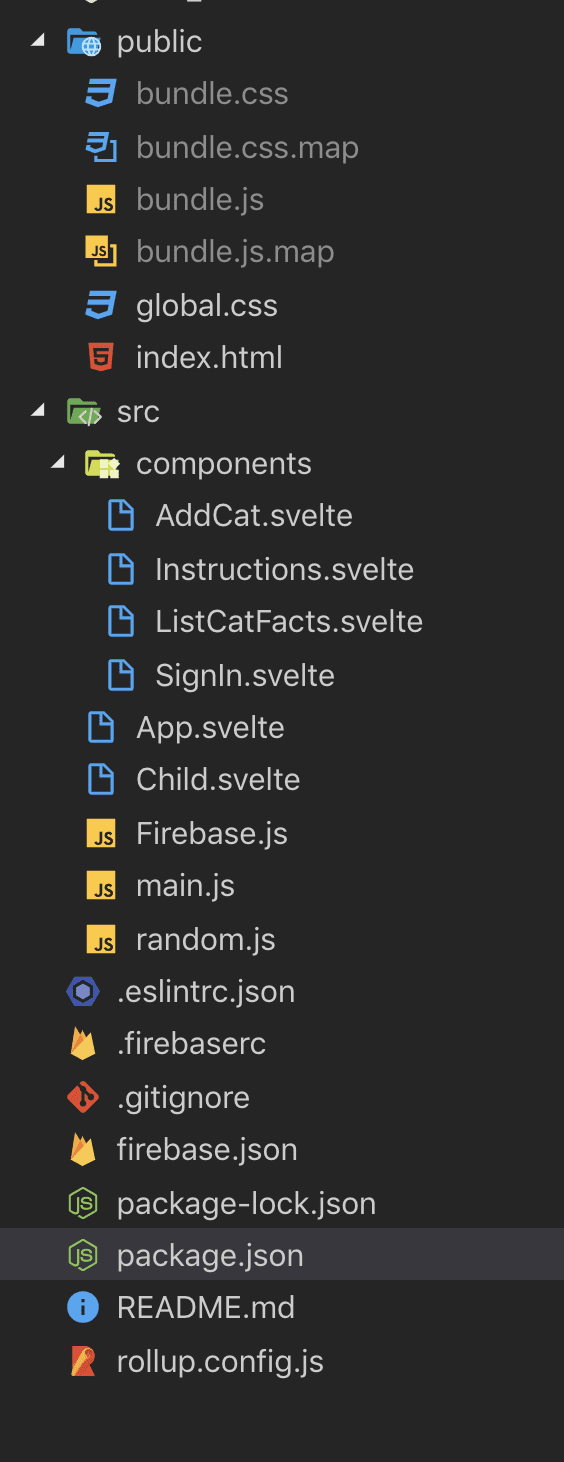

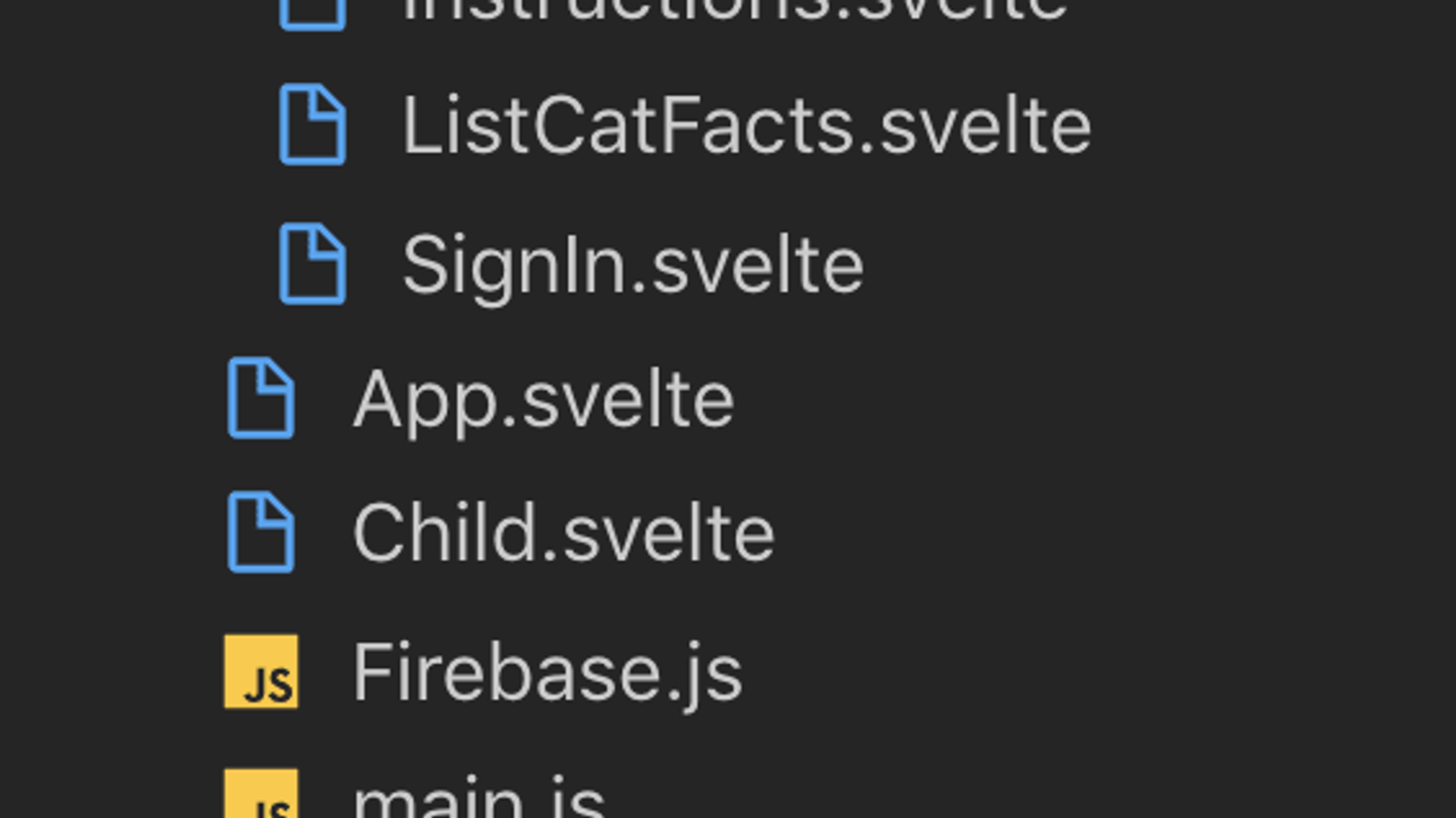

Final App Structure

Install dependencies

You will need rxfire, firebase, and rxjs

npm i rxfire firebase rxjs

Create Firebase.js

Firebase.js will be our main Firebase file and will include the tools for our firebase application, including the instantiation of firebase. This file includes rxfire for both the auth and firestore helper functions.Firebase.js

import "firebase/auth";
import "firebase/firestore";
import firebase from "firebase/app";
import { authState } from "rxfire/auth";
import { collectionData } from "rxfire/firestore";
import { filter } from "rxjs/operators";
const app = firebase.initializeApp({
  /\* Place your configuration here \*/
});
const firestore = firebase.firestore(app); // Initialize firestore
const auth = firebase.auth(app); // Initialize firebase auth
const loggedIn$ = authState(auth).pipe(filter(user => !!user)); // Observable only return when user is logged in.
export { app, auth, firestore, collectionData, loggedIn$ };
export default firebase;

You can skip the Instructions part of the lesson if you are already familiar with Svelte 3.

Simple Initial Component

Remove App.svelte and replace it with the following

You can basically think of a .svelte file equal to an html file. There are a few things to note here, any styles are scoped to the current component by default, in order to get styles outside of this you can place them within something like :global(div.flex-row). However (maybe best practice), I found it easier to move these from App.svelte over to /public/global.css;App.svelte

<script>
    import Instructions from './components/Instructions.svelte';
    import SignIn from './components/Signin.svelte';
    import AddCat from './components/AddCat.svelte';
    import ListCatFacts from './components/ListCatFacts.svelte';
    import { loggedIn$ } from './Firebase.js'
    /\* Make something more observable \*/
    const user = loggedIn$;
</script>
<style>
    /\* :global(div.flex-row){ display: flex; justify-content: center; flex-flow: row wrap; } :global(div.flex-column){ display: flex; justify-content: center; flex-flow: column; } .max-800{ max-width: 800px; } \*/
</style>
<div class="flex-row">
    <div class="flex-column">
        <Instructions />
    </div>
</div>

Create Instructions.svelte

This is a very simple Svelte Component that takes no props, it just returns straight html.components/Instructions.svelte

<div class="flex-row">
    <div> <img
            src="https://res.cloudinary.com/ajonp/image/upload/w\_500/v1556553295/ajonp-ajonp-com/18-rxfire-svelte-cats/RxFire\_Svelt.webp"
            alt="rxfire for cats" /> </div>
    <div>
        <p> In this example we will use RxFire to Observe the Cat Facts that we add to our Firestore Database. </p> <a
            href="https://github.com/AJONPLLC/rxfire-react-cats" target="no\_index">
            https://github.com/AJONPLLC/rxfire-react-cats </a>
        <ol>
            <li> Sign In <ul>
                    <li>Uses Google Auth for Firebase</li>
                    <li>Found in App.svelte</li>
                </ul>
            </li>
            <li> Add Cat Fact <ul>
                    <li>This will use an API and Insert the facts into Firestore</li>
                    <li>Found in components/AddCat.svelte</li>
                </ul>
            </li>
            <li> Firestore collection <ul>
                    <li>Observing catfacts for changes, heart eyes are your facts</li>
                    <li>Found in components/ListCatFacts.svelte</li>
                </ul>
            </li>
            <li> Sign Out <ul>
                    <li>Observe that user is removed</li>
                </ul>
            </li>
        </ol>
    </div>
</div>

Update collection catfacts

Create AddCat.svelte

The first button that we are going to add is simple enough it calls an API and pushes the data returned into a firestore collection as a new document. I always like to work from top down, so first lets import AddCat.svelte into our App.svelte.

Update App.svelte

App.svelte

... import AddCat from './components/AddCat'; ... <SignIn user={user} /> ...

We will now pass our first prop to AddCat, this is done simple by declaring a variable and passing it, in our case we will use const user = loggedIn$. Is this necessary, probably not but I wanted to show passing a prop, we could ideally just grab this from Firebase.js.Take note on the child we can then access this prop by defining export let user;.The addCatFact function calls an API that returns a single random cat fact from https://cat-fact.herokuapp.com. Because of CORS we have to pass it through a proxy, but you will see that we get a value back. We then use the javascript destructuring assignment to create a new object by adding our catFactDate to the object. This allows us to later sort the facts in our list in descending order.We add a random cat fact to firestore and by adding our catFactDate to the object. This allows us to later sort the facts in our list in descending order.Things we need to pay special note to here are

  • #if - If blocks just a standard if that you would expect
  • $user - Subscriptions if you come from angular this is like the async pipe.
  • on:click={addCatFact - [Component Events](https://svelte.dev/docs#Component_events) this is similar to the events normally found on html componens but here we are passing the function addCatFact by just surrounding with curlys.
<script>
    import { firestore } from '../Firebase';
    import catFacts from '../random.js';
    export let user;
    const addCatFact = async () => {
        try {
            /\* Gave up on the API working!!! \*/
            const value = catFacts\[Math.floor(Math.random() \* catFacts.length)\];
            await firestore.collection('catfacts').add({ ...value, catFactDate: new Date() });
        }
        catch (error) { console.error(error); }
    };
</script>
<div class="flex-column">
    {#if $user} <button className="myButton" on:click="{addCatFact}"> 2. Add Cat Fact </button> {/if} </div>

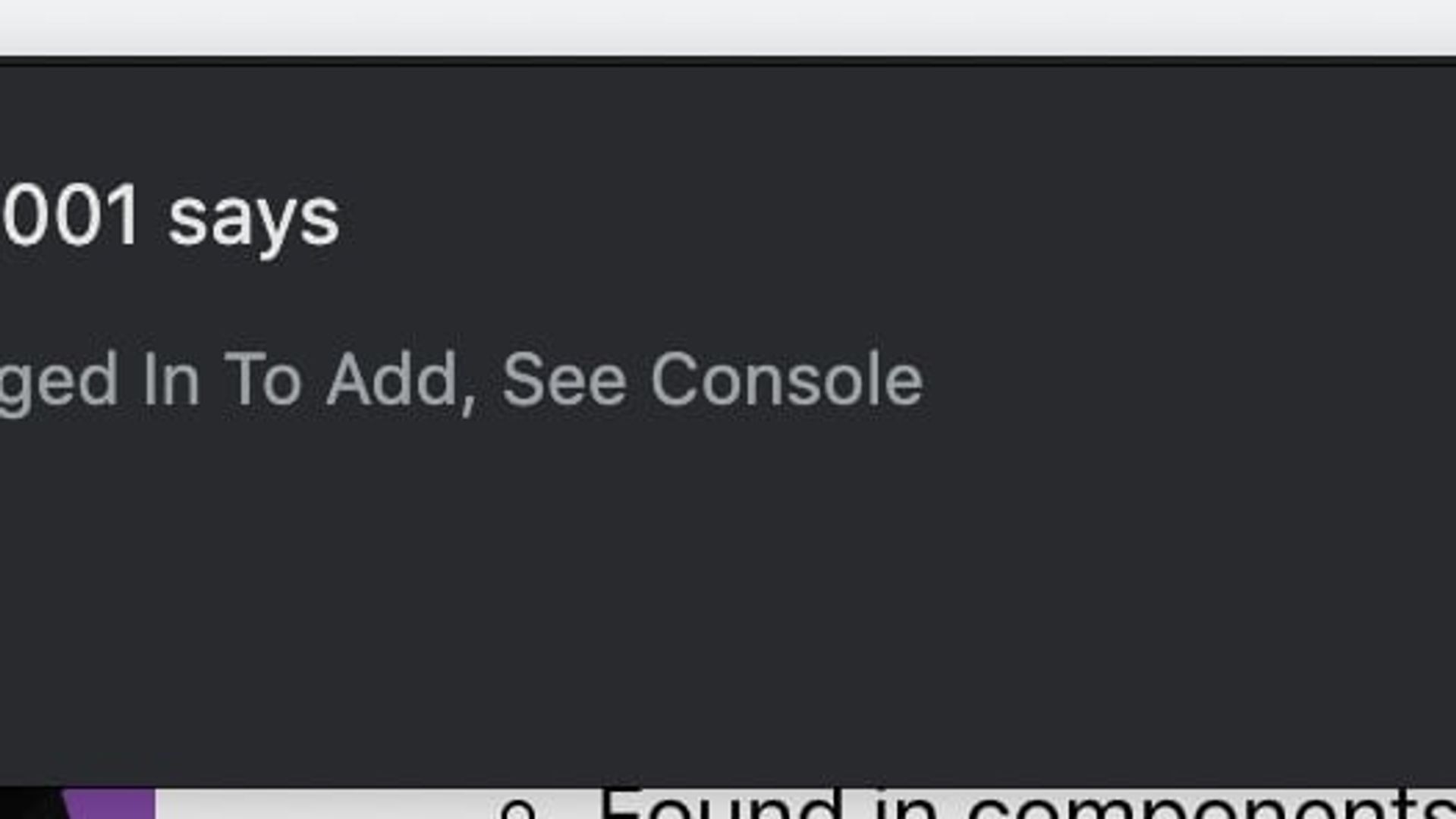

Now if you try this right now it should fail with this alert

This is expected as our firestore.rules are set to strict mode, we will add those after we get through our authentication section next.You may also notice in the console (and on the screen fact jumps in and out) that firebase actually adds to our array, until failing on the backend. This is done on purpose as it gives us the fast UI that we expect while still maintaining the data integrity.

Add Firebase Authentication

Update App.svelte

In the SignIn component we will again use props, we will pass the user state.App.svelte

<script> ... import SignIn from './components/Signin.svelte'; ... </script> ... <SignIn user={user} /> ...

<script>
  import firebase, { app } from '../Firebase'; /\* this is like props \*/ export let user; const signIn = () => { const authProvider = new firebase.auth.GoogleAuthProvider(); app.auth().signInWithPopup(authProvider); }; const signOut = async () => { await firebase.auth().signOut(); };
</script>
<div class="flex-column">
  {#if $user}
  <h1>
    Welcome {$user.email}
    <button className="myButton" on:click="{signOut}">4. Sign Out</button>
  </h1>
  {:else}
  <button className="myButton" on:click="{signIn}">1. Sign In</button> {/if}
</div>

Update AddCat to include user uid

Pass user to AddCat

Update our main app to pass the user prop.App.svelte

<AddCat user={user} />

Now we can use this to include with our data going to firestore. AddCat.svelte

As well as whether or not to show the Add Cat Fact button, we check to see if the user exists. This button should only show when a user is signed in.

<div class="flex-column"> {#if $user} <button className="myButton" on:click="{addCatFact}"> 2. Add Cat Fact </button> {/if} </div>

Update firestore.rules

service cloud.firestore {
    match /databases/{database}/documents {
        // LockDown All
        match /{document=\*\*} {
            allow read: if false; allow write: if false;
        }
        // User
        match /users/{userId} {
            allow read: if false;
            allow write: if request.resource.id == request.auth.uid;
        }
        // CatFacts
        match /catfacts/{catFactId} {
            allow read: if true;
            allow write: if request.auth.uid != null && request.resource.data.uid == request.auth.uid;
        }
    }
}

Create List of Cat Facts

Create ListCatFacts

This is probably the most important part of RxFire it will return an Observable that you can subscribe to for all changes to a collection by using the function collectionData which takes the collection as paramater as well as an option id to create, in our case we pass catFactsRef.orderBy('catFactDate', 'desc') and 'catFactId'.Now we can just use a map to iterate on each catFact, whenever the Observable updates the current catFact state the array is updated and we can show the full list update using {#each $catFacts as catFact} then if you are the owner of the fact you get catheart eyes using a if block.

<script>
  import { firestore } from "../Firebase";
  import catFacts from "../random.js";
  export let user;
  const addCatFact = async () => {
    try {
      /\* Gave up on the API working!!! \*/ const value =
        catFacts\[Math.floor(Math.random() \* catFacts.length)\];
      await firestore
        .collection("catfacts")
        .add({ ...value, catFactDate: new Date() });
    } catch (error) {
      console.error(error);
    }
  };
</script>
<div class="flex-column">
  {#if $user}
  <button className="myButton" on:click="{addCatFact}">2. Add Cat Fact</button>
  {/if}
</div>
